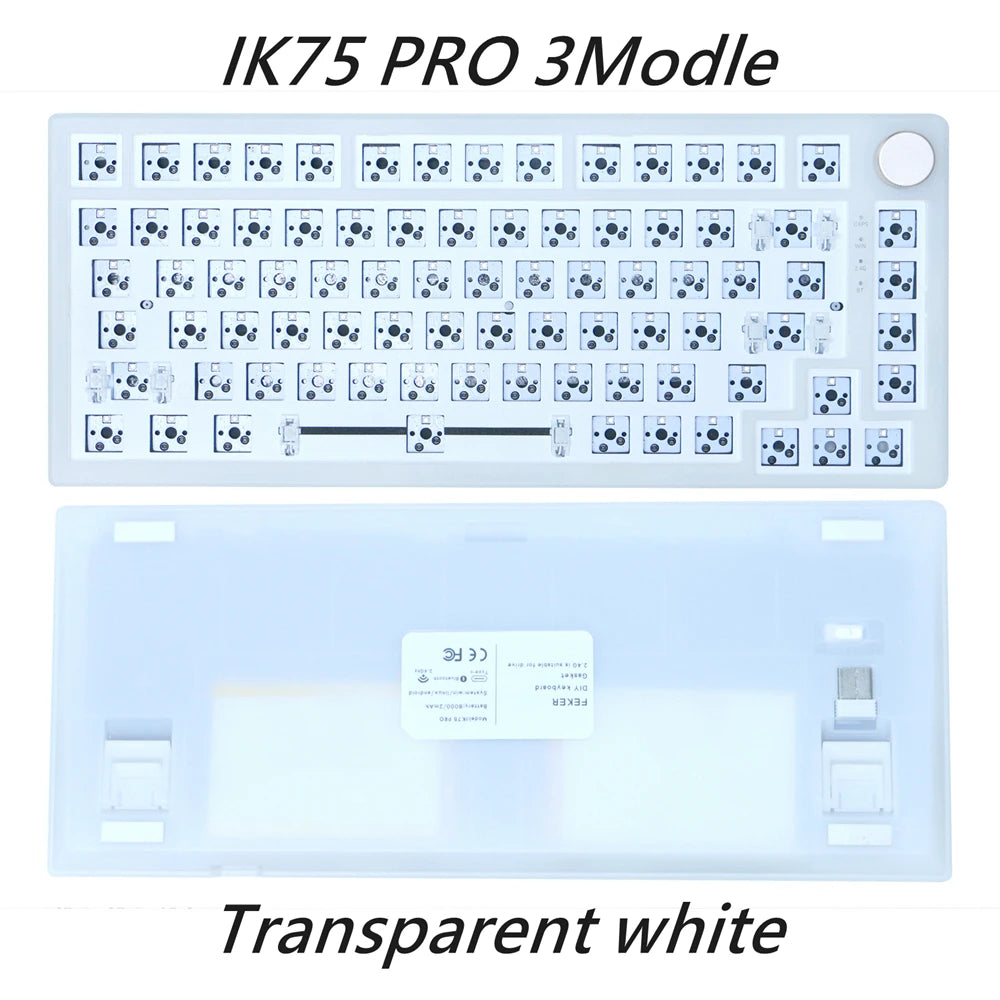

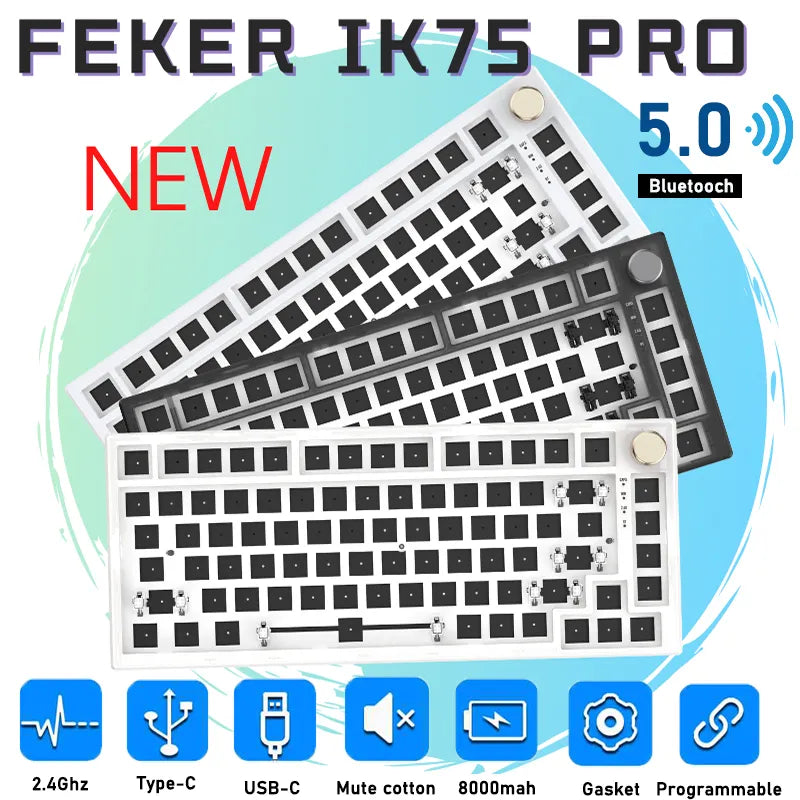

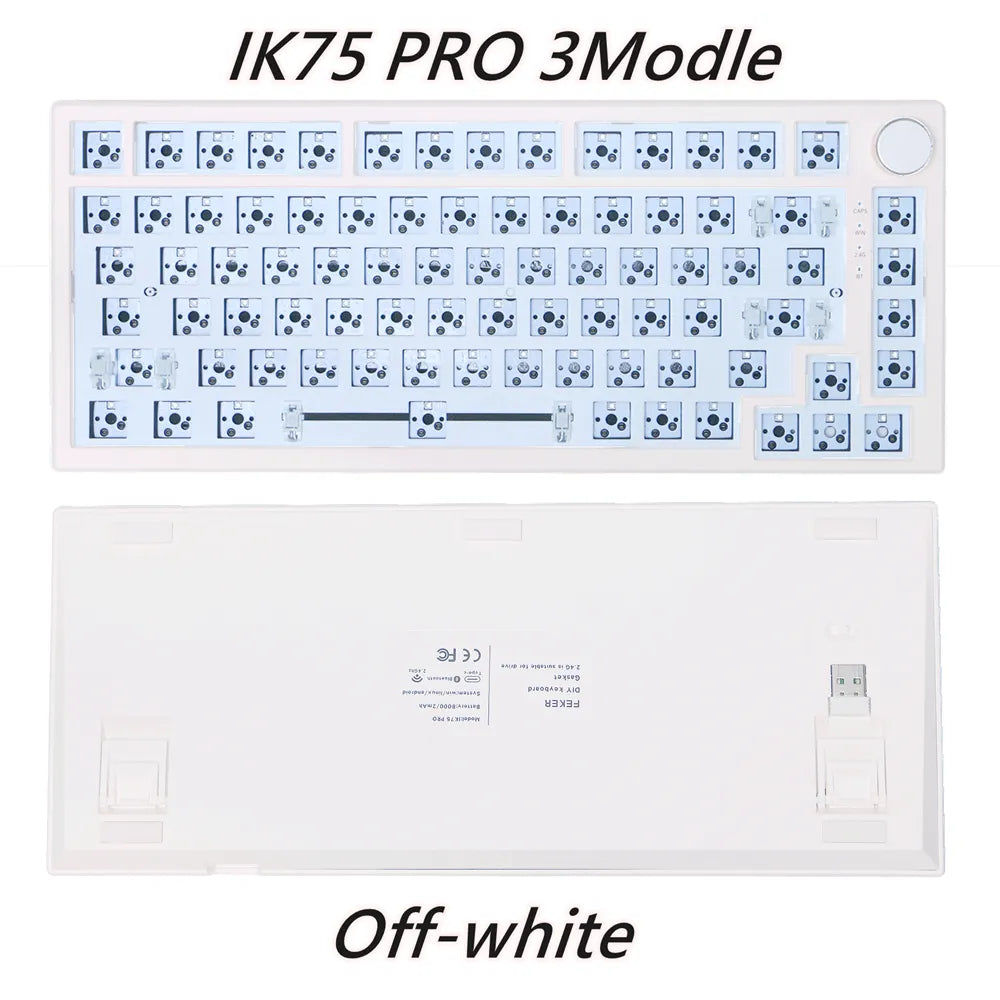

3 Mode FEKER IK75 V3 kit IK75 Pro 75% Mechanical Keyboard DIY Kit Hot Swap Wireless RGB Dial Knob Keyboard QMK+VIA Silicone pad

3 Mode FEKER IK75 V3 kit IK75 Pro 75% Mechanical Keyboard DIY Kit Hot Swap Wireless RGB Dial Knob Keyboard QMK+VIA Silicone pad

$142.62 USD
$142.62 USD
Sale Sold out

SPECIFICATIONS

Brand Name: cmany

Origin: Mainland China

Operation Style: Mechanical

Language: English

Type: Bluetooth-compatible Wireless

Application: Desktop

Application: Laptop

Application: Number

Application: Tablet

Keyboard Standard: Mini Keyboard

Style: Standard

Certification: CE

Package: Yes

Interface Type: bluetooth

Interface Type: Bluetooth/USB

Wrist Support: No

Full Size keyboard: No

keycaps for mechanical keyboard: keycaps custom

keycaps retro: keycaps cherry profile

keycaps gmk: keycaps remover

keycaps kawaii: keyboard diy kit

keyboard kit: keyboard switches

keyboard mechanichal: keyboard bluetooth

keyboard keycaps: keyboard hotswap

keyboard lube kit: keyboard case




Notes:

Please be careful when you try to open the case to swap the pc plate especially for the 3 mode version because the switch pin is very easy to break !!!

Demonstration Photos For Reference (Please note some details in the photos are not the same as our product, keycaps and switches are not included)

Every customer buying this product is more than welcome to leave a review with the photos of your build keyboard, we're going to bring up a vote of that and Special Gifts are given away for the winners!


Feker Ik75 Keyboard software:
Ik75 apple link:https://drive.google.com/file/d/1i_AogLXzJKx-9NpDkDYPV5foSoxMkWur/view?usp=sharing
Ik75 win link:https://drive.google.com/file/d/1dxBWCCN97dral48tgiCqRzn6U0T5wfRV/view?usp=sharing
Feker Ik75 Keyboard software upgrade package: https://drive.google.com/file/d/1dMxqN2gjo_utOI8jP9dl5kMd2EER-vTa/view?usp=sharing
Feker IK75 1mode:https://drive.google.com/file/d/116KjFAqKW642AdlyqnG8QNKgu4KnZP0F/view?usp=share_link

Feker IK75 3mode:https://drive.google.com/drive/folders/19xx6ehPX-CEz_5JMtuOVRBqs2YILWO9D?usp=share_link


Specification:



Brand: FEKER

Layout:75% layout

Model:IK75

Keys Amount : 83 Keys

Case:Transparent Case

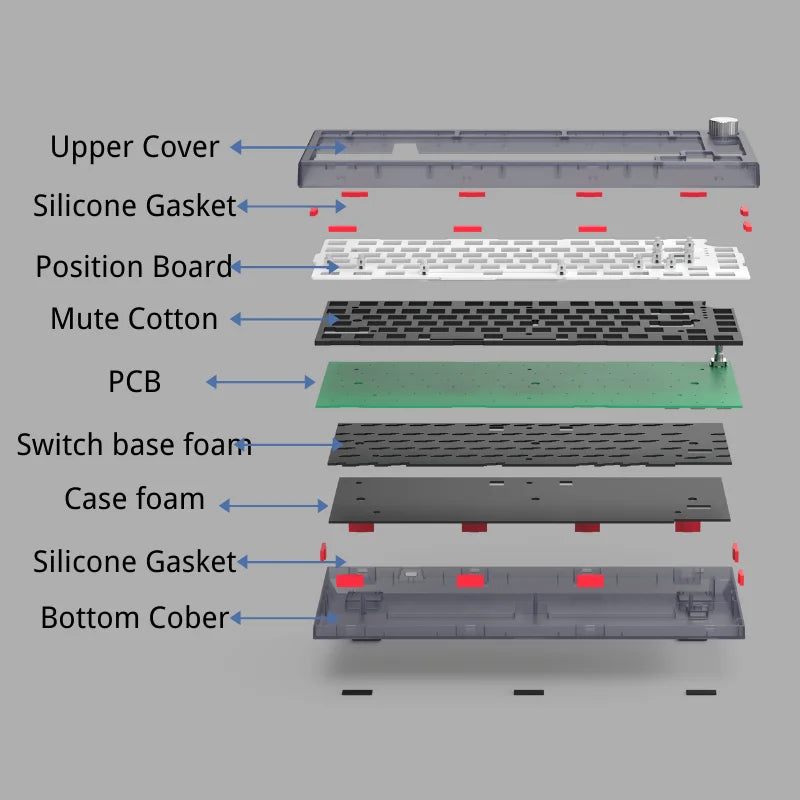

Structure:Gasket Mount

Position Plate :Steel/PC

Mute cotton:Pcb EVA Mute Cotton+EVA Case Foam

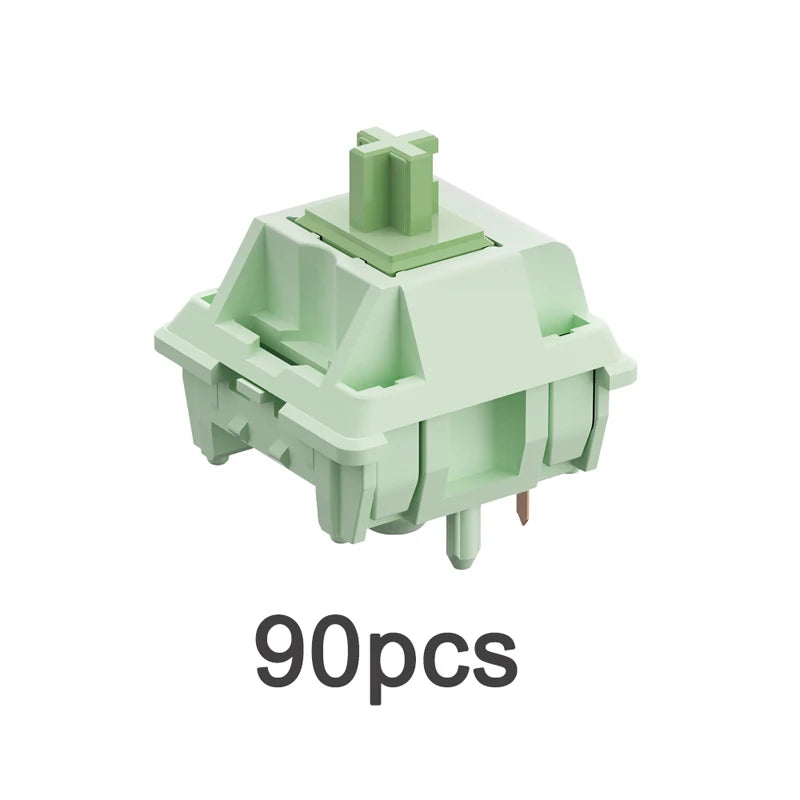

Switch : 3/5pin are adjustable,Hotswap terminal

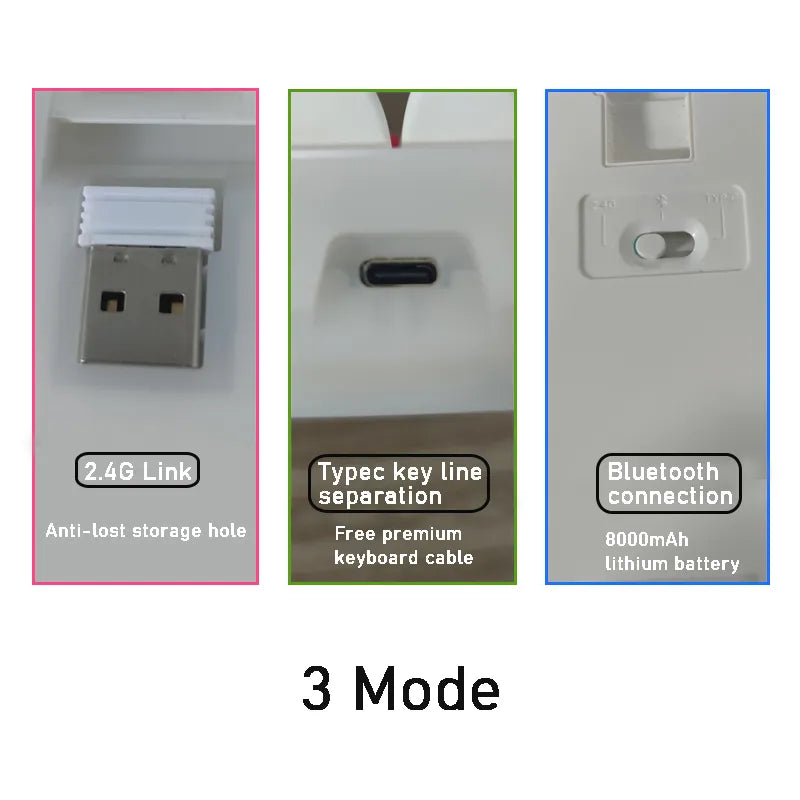

Connecting Mode:Triple Mode, USB Wired&bluetooth LE 5.0&2.4Ghz

Knob:Knob Function Customization

Anti-ghost Key : NKRO

Battery Capacity:Built in 8000mAh(4000mah+4000mah) Rechargeable Li-ion Battery

Operating Voltage:3.7V

USB Operating Current:DC 5V, 500mA Max

Cable :Detachable 1.8m Type-C USB Cable

Operating :Compatible with Windows2000 and above and MAC

System:BLE supports WIN8 or above system

Features:

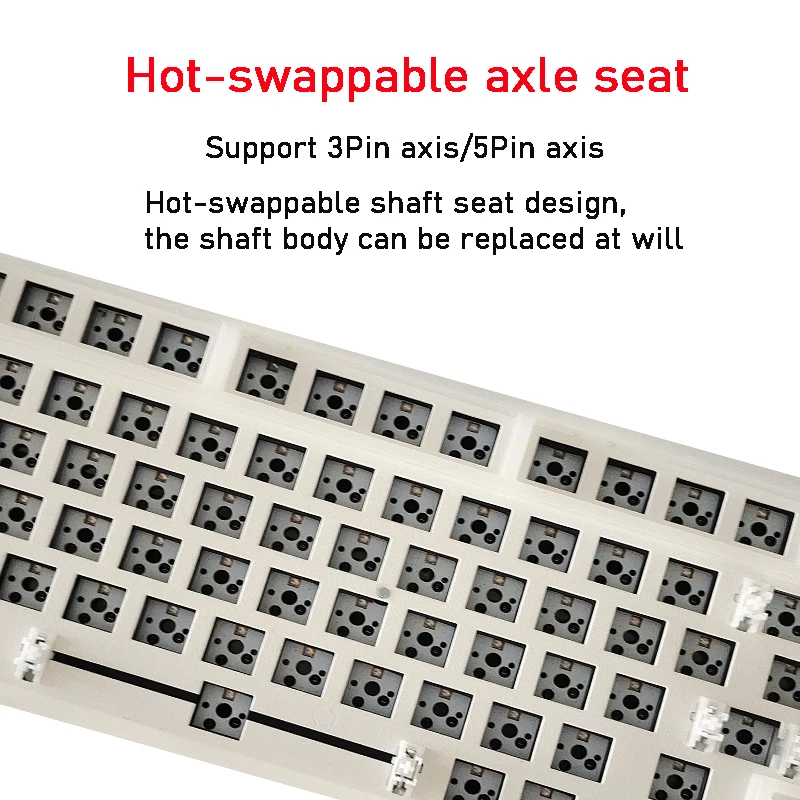

-Hotswap Keyboard DIY Kit. The custom kit is equipped with hot swappable terminals, with which you could install the switches directly without soldering. It's compatible with Cherry MX switches, Kailh switches and Gateron switches and other 3 pin or 5 pin switches. You can easily build up your own mechanical keyboard with this kit.

-Gasket Mount.As a very famous keyboard structure.This technique will make the keyboard be Rich in elasticity,make the typing feeling to be better.

-Mute cotton. A high configuration of mechanical keyboard.Eliminate cavity sound/increase sound thickness/reduce keyboard resonance.Above this,we prepare 3 Mute cotton for you,one is the Pcb EVA Mute Cotton to absorb the absorb when typing,and the other two is EVA Case Foam to reduce the Cavity sound.They can give you an better Hearing and touch experience.

-2 Position board.The IK75 will provide two type of Position board.One of them is the normal steel Position board,and the other one is the PC Position board,which is the best Partner with Gasket mount.

-Lubed Stabilizer.The Stabilizer are lubed when they leave the factory,you don't need lost of time on lubing the Stabilizer after you received the keyboard.

-Knob Function Customization.The Knob can be customized as the volume button/play button/stop button with the driver.

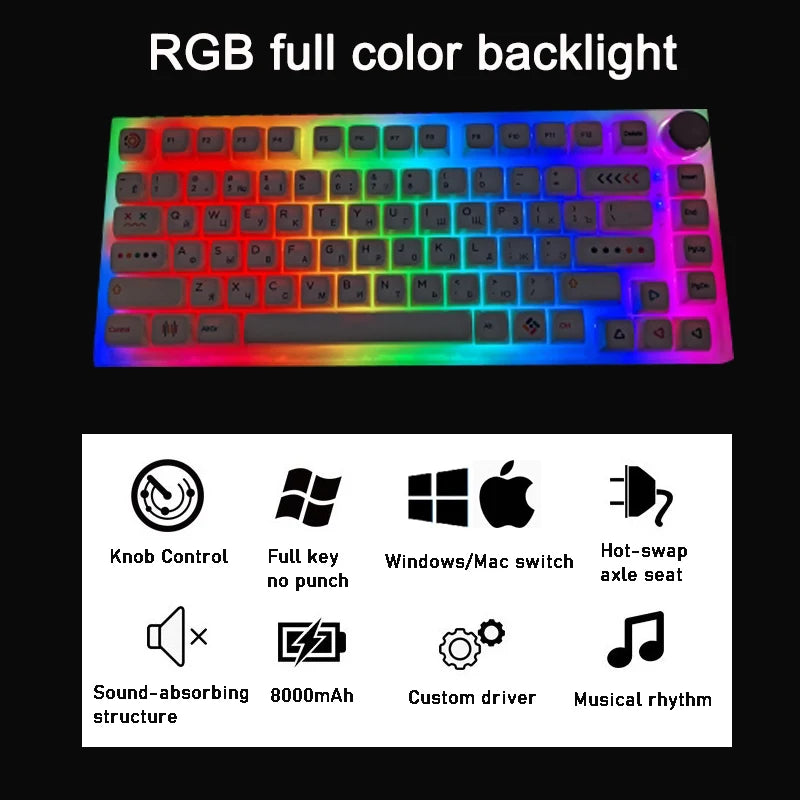

-16.8 Million RGB Backlight. RGB is such a cool element while playing games. This custom kit fully know your needs and thus this model is equipped with RGB SMD light. More than 16.8 million lights are available. Also there is two kinds of Music rhythm mode,more fun in the IK75.


FN combination keys function:

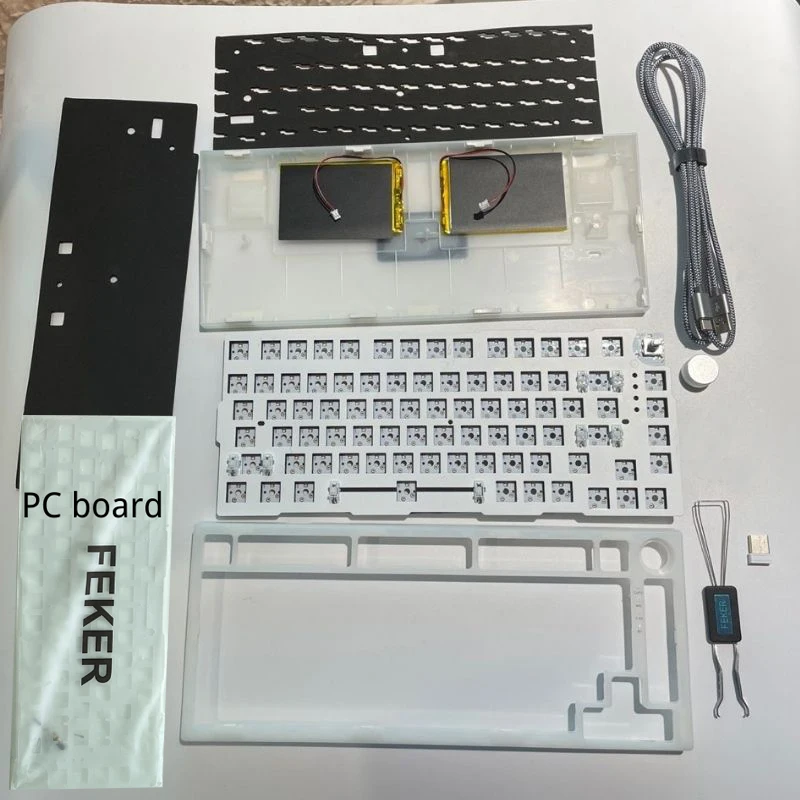

FEKER IK75 Pro Package Included:


1 * Keyboard Customized Kit(Case+Pcb+3*Mute Cotton+Stabilizer+2*Positioning Board+2*Battery)
1 * Type-c cable
1 * 2.4G receiver
1 * 2 in 1 puller
1 * Manual

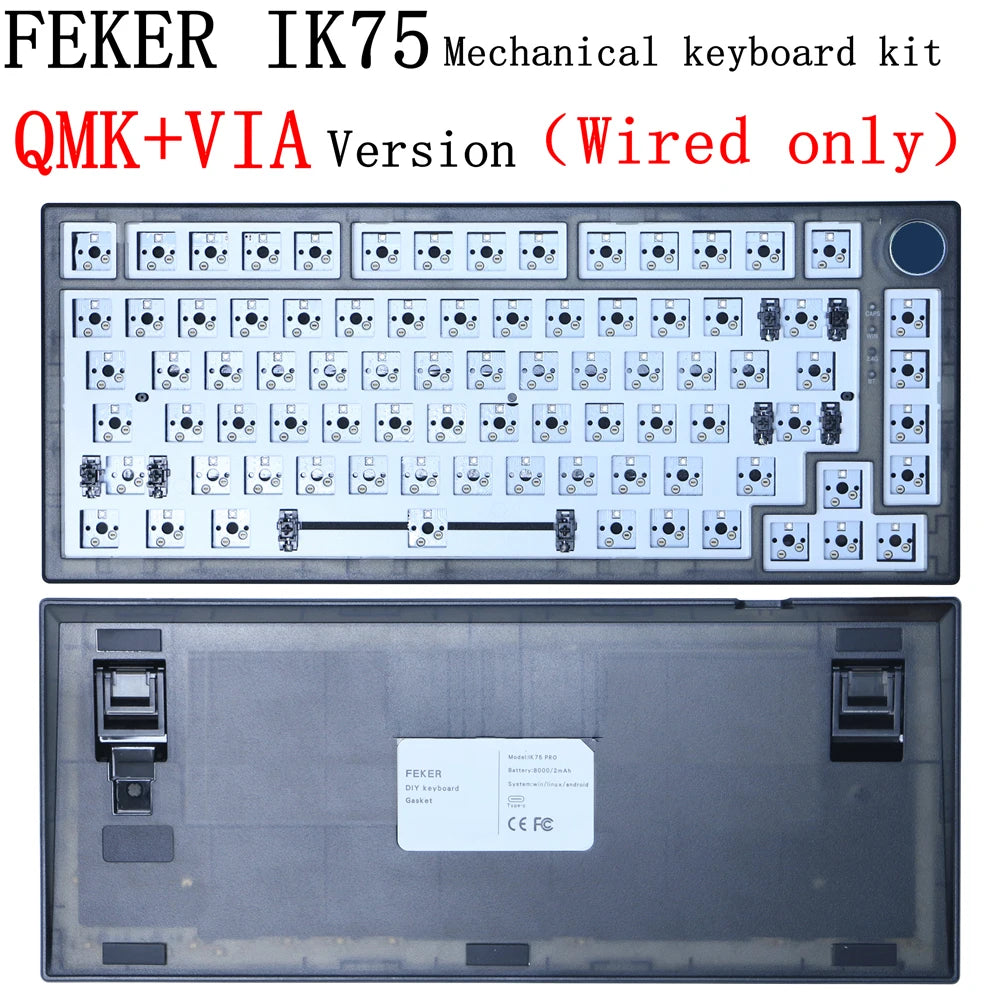

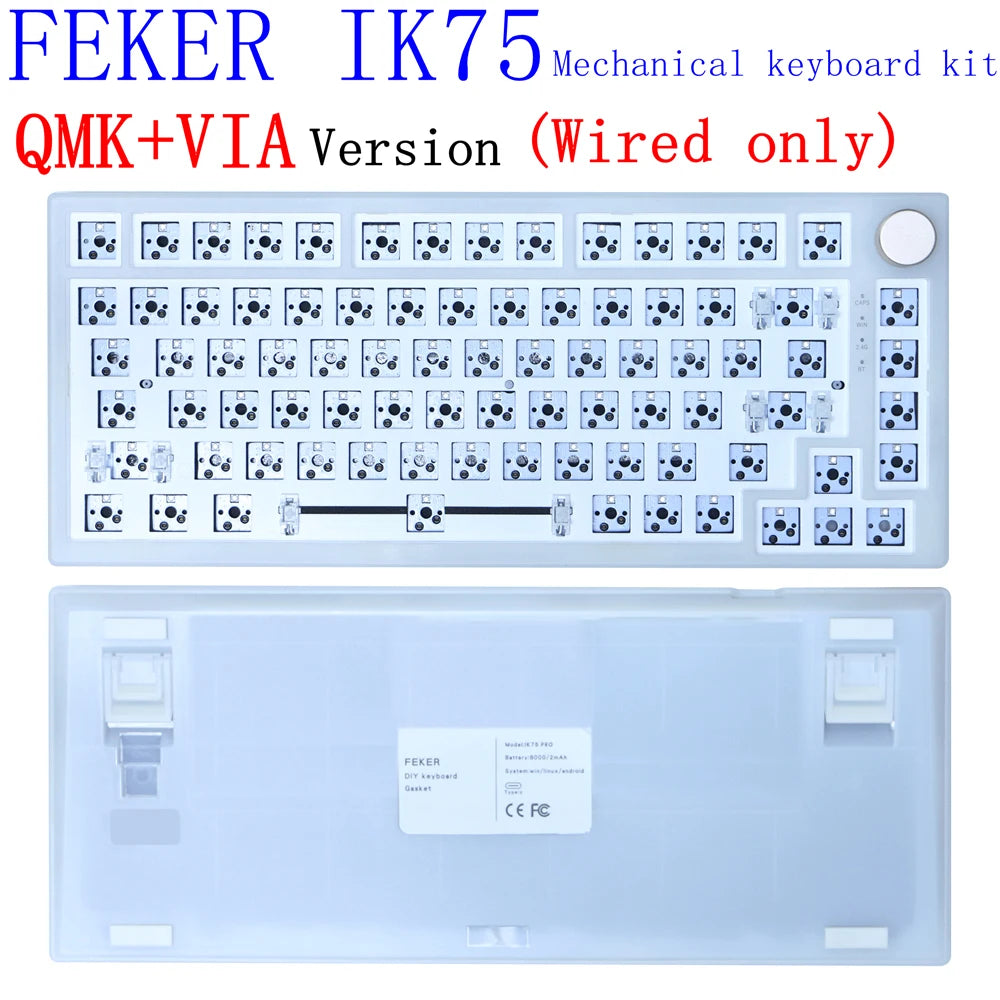

FEKER IK75 QMK+VIA VERSION Package Included:

1 * Metal plate
1 * PCB
1 * PC shell (UP)
1 * 2 in 1 Switch puller
1 * type-c cable

1 * PC board

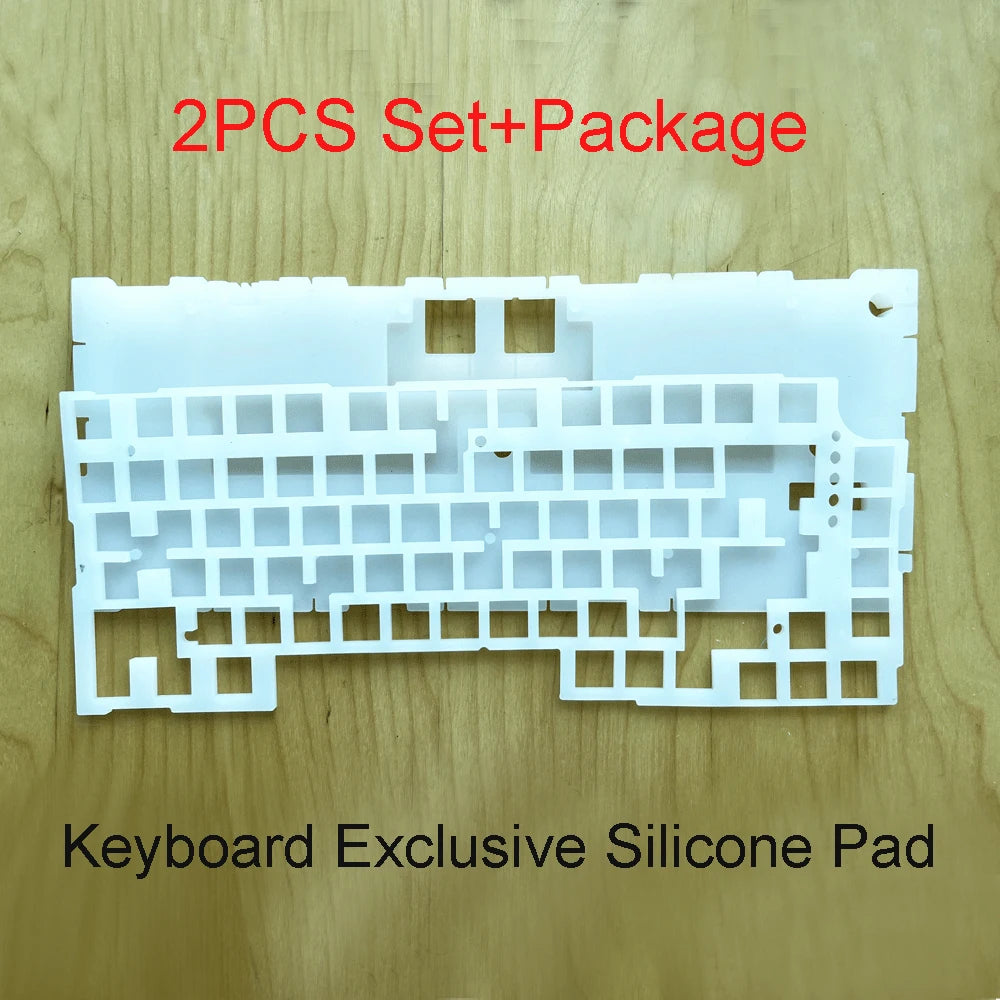

2 * Silicone pad  (lower shell silicone+PCB silicone)



Backlight mode:

Press FN + Del to change the backlight mode

Press FN + Space to turn off the backlight

The constant light mode doesn't adjust the backlight speed; The other RGB modes can adjust the speed, brightness, color, direction, and brightness in a total of five levels, default maximum brightness; A total of five levels of speed, standard the third level of speed
